Tube Making Machine Pvc Pipe Making Machine High quality Soft PVC hose pipe medical tube making machine is manly used by pvc medical tube making , machine parts including automatic feeder , single screw extruder , high precise lever tube mold , forming tank , laser meter for final tube diameter and roundness checking , puller , cutter machine or winder , easy and safe for operation , lower consumption , stable for making .
The Composition of Tube Making Machine Pvc Pipe Making Machine High quality Soft PVC hose pipe medical tube making machine:
| NO. | Name | Quantity | Remarks |
| 1. | SHSJ-50/55 Main Extruder | 1SET | Single Screw |
| 2 | Extruder Mould | 1SET | Customized |
| 3 | 4Meters Water Tank | 1SET | Vacuum Pump |
| 4 | Servo Puller and Cutting | 1SET | |
| 5 | Stacker | 1SET | Collector |
| 6 | Winder | 1SET | Customized |

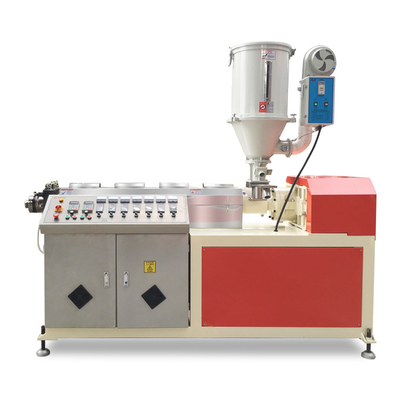

1,SHSJ55-28 single screw extruder 1 SET
1) Model Φ55*28D
2) Screw: (Special for PVC material )
Dia: 55mm
L/D: 30:1
Material: 38CrMoAlA
2. Extruding Mould 1SET
------Steel Material: S136
------Size: According to sample size
3. 4meter automation circulation heating cooling water tank 1SET
------Water tank material: Stainless steel SUS304
------Water tank length: 6000mm (divided into two segments)
------ Automatic control of the heating water tank :1piece
------ Heating power: 2KWX220V
------ 90W, 220V high temperature water pump: 1 set
------Three dimensional adjusting tank frame 1 meters (around / about / on)
4. Durable PU puller device and Cutting Machine 1 SET
------Power of Motor : 0.75 Kw with double motor
------The length of Belt: 500mm
------The speed of puller 30m/min
------Raw Material of Belt PU
The Machine running will be very stable. It is easy to operate up and down
5.Stacker 1 SET
------Length : According the cutting lenght
Collect the samples
Dongguan Songhu Plastic Machinery Corp. was eastablished in 2012, it is a professional manufacturer for precise small and medium extruder. We have extrusion machine for 3d printer filament, medical tube, industrial tube and profile.
We have accumulated a lot of experience in precise extruder machine, especially for 3d printer filament extruder and medical tube extruder.
We just developed a new production line for 3d filament, which can produce dual-filament at same time, it maximize the production efficiency , the total line speed can be up to 130m/min with neat winding system . the diameter tolerance is 0.02mm. besides, we are also developing a new medical tube extruder, all frame are made of aluminum profile. It is not only comply with medical standard, but also more compacted and more attractive appearance.
More than 35% production line are exported to other countries, such as Indonesia, Vietnam, Thailand, USA,and some Europe countries.
Dongguan Songhu put great efforts on developing small and medium precision extrusion equipment, try to realize stable and high speed extrusion technology.
