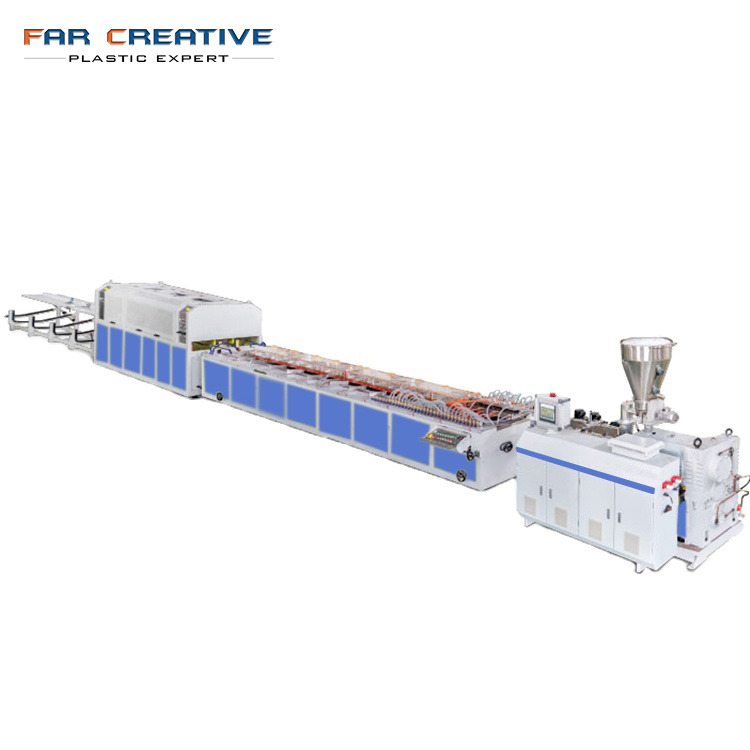

Profile Making Plastic Recycling PVC Panel Profile Machine

1 Piece
MOQ
$50,000.00(1 - 2 Pieces) $48,000.00(>=3 Pieces)
Price
Profile Making Plastic Recycling PVC Panel Profile Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Profile
Plastic Processed: PE, PP, PVC, WPC, PA, FRPP/PVC, HDPE, PPR, HDPE/PP, PE/PP, LDPE
Condition: New
Screw Design: Double-screw
Twin Screw Type: Counter-rotating Conical Twin-screw
Screw Material: 38CrMoALA
Screw Diameter (mm): 65/132
Screw L/D Ratio: 22:1
Screw Speed (rpm): 35 Rpm
Showroom Location: Viet Nam, Philippines, Indonesia, Thailand
Place Of Origin: Jiangsu, China
Brand Name: Far Creative
Voltage: Customized
Dimension(L*W*H): 38*4*2.5
Power (kW): 37
Weight: 3500 KG
Warranty: 1 Year
Key Selling Points: High Productivity
Applicable Industries: Manufacturing Plant
Marketing Type: New Product 2022
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Engine, Gearbox
Name: PVC Profile
Screw: Twin Screw
Motor: SIEMENS Brand
Processing Type: Exturding Machine
Control: SIEMENS PLC+Touch Screen
Extruder: 65/132
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: far creative
Payment & Shipping Terms
Product Description
Products Description
PVC Profile Extrusion Production Line
1
Twin Srew Plastic Extruder
1set
2
Mould
1set
3
Vacuum Forming Table
1set
4
Hauling Machine
1set
5
Pipe Cutting Machine
1set
6
Stacking Rack
1set
1.We are a high-tech enterprise which is specialized in research, manufacture and marketing plastic extrusion lines, plastic production line.
2.Our plastic extrusion lines based on Plastic Extruders: Single Screw Extruder, Conical Twin Screw Extruder and Parallel Twin Screw Extruder
3.Our plastic making machine can make many kinds of plastic productions like: PVC pipe, CPVC pipe, PE/HDPE/PE-RT pipe, PP-R pipe,plastic foamed profile, WPC profile and panel, wood plastic composite and so on.
4.Plastic Extruder is widely used in Plastic industry. It is the main part of Plastic Pipe Extrusion Line, Plastic Profile Extrusion Line, Plastic Recycling Line and Plastic Granulating Line.
5.We provide plastic machine which can make Agriculture pipe, machines to produce pellet, laminating machine, wooden window frames machine. Our machine can make 3D printer material.
6.Our plastic extruder use good quality screw in plastic machinery. Our plastic machine have long-life.
Product Appliaction
Profile extrusion production line is mainly used for PVC door and window profiles, PE and PVC wood-plastic profiles, decorative profiles and other products. According to different profiles and molds, different specifications of extruders can be selected to meet the needs of output. According to different molds, the setting table can choose 4 meters, 6 meters, 8 meters, 10 meters and other specifications to meet the requirements of high-speed extrusion. In the case of production line, according to customer needs, add mixing system.

Recommend Products
Technical Parameter
Specifications
Machine Model
YF
Processed Material
PVC,PE,HDPE PPR and etc.
Final Product Shape
PVC Board
Output Range(kg/h)
220-250
Diameter of screw
50mm-110mm(standard)
Voltage Standard
According to the Voltage of the Customer's Location
Warranty
12 months from the date of bill of lading
Technical services
Project design, factory construction, installation and recommendations, commissioning
Maximum Width(mm)
Conical twin-screw extruder
Motor(KW)
Max.Capacity(KG/H)
180
SJZ51/105
SJZ55/110
18.5/22
80-120
120-150
240
SJZ65/132
37
175-250
300
SJZ65/132
37
175-250
400
SJZ65/132
SJZ80/156
37/55
175-250
250-350
600
SJZ65/132
SJZ80/156
37/55
175-250
250-350
800
SJZ80/156
55
280-350
1000
SJZ80/156
75
320-450
1200
SJZ92/188
110
500-600
1600
SJZ110/220
200
700-900
2400
SJZ110/220
200
700-900
Details Images
1.Far Creative Twin Screw Extruder
The extruder of PVC profile production line adopt high efficiency screw & barrel, notched feeding cylinder and is equipped with strong water jacket cooler, which greatly improves its transmission capacity and guarantees high-efficiency extrusion. the gearbox is hardening teeth gearbox with self-lubrication system.

The motor adopt Siemens standard motor and speed controlled by ABB inverter. Thecontrol system adopts Siemens PLC control or button control.
2.Die Mould

- Spacious flow channel design to guarantee highextrusion capacity and good melt.

- Optimized temperature control and flow channeldesign, precise melt temperature control.
3. Vacuum calibration tank
The shaping table is made of 304 stainless steel, and the main shaping part is made of materials such as brass, steel or aluminum to reduce wear and chrome plating.
High-precision high-quality water ring vacuum pump ensures a stable vacuum environment. The cooling is realized by a water bath, the cooling and heating are uniform, and the production process is simple and convenient.
Maximum shape range(mm)
Forming table length(mm)
Number of fans
Vacuum pump power (kw)
Pump power (KW)
180
4000
1
1*3
1*2.2
240
6000
1
2*5.5
1*4
300
6000
2
2*5.5
1*4
400
6000
2
2*5.5
1*4
600
6000
2
3*5.5
1*4
800
6000
2
customized
customized
1000
8000
2
customized
customized
1200
8000
2
customized
customized
1600
8000
2
customized
customized
2400
8000
2
customized
customized
4.Manipulator
The grasping and unloading plate manipulator is composed of a vacuum suction cup device, a lifting device and a moving device.

It is used for the composite movement of vertical lifting movement and horizontal movement, for picking up finished plates and profiles and arranging blank plates. The device realizes the automation of plate conveying
Company Information
Far creative Plastic Machinery Co. Ltd. was founded in 2010 and is a scientific and technological knowledge-intensive enterprise integrating research and development,production and sales.
The company has ten years of production research and development experience and our product includes full biodegradable granulation production line, wood plastic outdoor profile production line, degradable straw production line, PE,PVC,PPR plastic water supply pipeline production line, drainage pipeline production line,power pipeline and other plastic pipeline equipment.
Our factory is located in zhangjiagang city, and it only takes around two hours driving from Shanghai international airport. Welcome to visit our factory, and hope to cooperate with you in near future.
Why Choose Us
FAQ
Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 11 years

Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.

Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)

Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.

Q: How to reach our factory?
A: It will take 40 minutes from Shanghai International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
