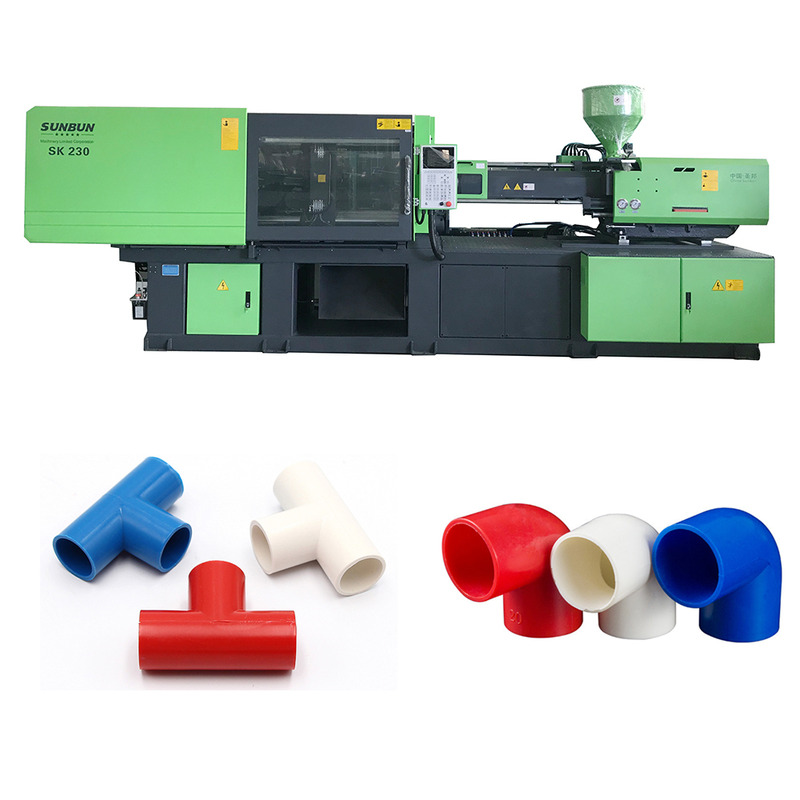

Horizontal Industrial Customized PVC Pipe Manufacturing Fitting Plastic Injection Machine Price

1.0 Pieces
MOQ
Horizontal Industrial Customized PVC Pipe Manufacturing Fitting Plastic Injection Machine Price
Features Gallery Product Description Request A Quote
Features
Specifications
Plastic Processed: PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
Condition: New
Style: Horizontal
Distance Between Tie Bars(Width)(mm): 580mm
Distance Between Tie Bars(Height)(mm): 530mm
Mold Height(mm): 220 - 560 Mm
Ejector Number: 1+12
Ejector Stroke(mm): 160 Mm
Ejector Force(kN): 70 KN
Theoretical Shot Volume(cm³): 471 Cm³
Injection Rate (g/s): 207 G/s
Machine Type: Hydraulic
Injection Weight (g): 428 G
Screw Speed (rpm): 1 - 221 Rpm
Screw Diameter (mm): 45 Mm
Screw L/D Ratio: 22
Distance Between Tie Bars: 580x530
Weight (KG): 7200
Type: Preform Injection
Place Of Origin: Zhejiang, China
Open Stroke(mm): 550 Mm
Model Number: SK230 - PVC
Brand Name: SUNBUN
Power (kW): 30 KW
Warranty: 1 Year
Key Selling Points: Energy Saving
Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Construction Works
Showroom Location: Egypt, Turkey, Brazil, Indonesia, Russia, Morocco, Algeria, Bangladesh, Ukraine
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Other, Pressure Vessel, Engine, Gearbox
After-sales Service Provided: Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Turkey, Brazil, Indonesia, Russia, Morocco, Algeria, Bangladesh, Ukraine
Certification: CE, ROHS
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SUNBUN
Certification: CE, ROHS
Model Number: SK230 - PVC
Payment & Shipping Terms
Supply Ability: 1000 Piece/Pieces per Month
Product Description
Product Description

SK SERIES MECHANICAL VERTICAL-COMPRESSION STRUCTURE

Resilient mould thickness and long displacement stroke
Reasonable oil circuit design, which is more energy-saving,
improves the operating speed and can save 2%-6% raw
materials from 90% products for the customers.
Reinforced molding board, thicker pull rod, high rigidity frame, with more stable operation state and longer service life.

TRADITIONAL STRUCTURE


The machine of this series is equipped with special high-speed storage motor and hydraulic components of world-renowned brands, to ensure a fast, efficient and prolonged operation. By applying high-response oil circuit and hydraulic valve plate with modular design, the machine has an optimized oil circuit layout large in size and free of damp, which can effectively reduce the loss of pressure.

Mechanical Vertical-Compression Structure Applied by Sunbun Injection Molding Machine

1.100% clamping use ratio, 10%-20% higher than that of traditional structures;
2. Less fins on the finished products;
3. 2%-6% raw materials saved from production than that of traditional structures;
4. Effective protection for the mould, molding board, and pull rod;
5. A opening stroke 10%-20% longer than that of traditional structures;
6. Less deformation caused by cooling of the products.
Specification










Injection Part
Item/type
Unit
SK230 - PVC
Screw type
A
B
Screw diameter
mm
50
55
Screw diame-ter ratio
L/D
22
20
Theoretical injection volume
cm³
471
570
Injection volume (PS)
g
428
519
Maximum rate for inject-ion to air
cm³/s
207
250
Injection pressure
MPa
161
133
Injection stroke
mm
240
Maximum injection speed
mm/s
111
Maximal Rotational Speed of Screw
r/min
221








Clamping Part
Clamp Tonnage
KN
2300
Toggle stroke
mm
550
Distance between tie bars
mmxmm
580x530
Maximum mould height
mm
560
Minimum mould height
mm
220
Ejection stroke
mm
160
Ejector force forward
KN
70
Ejector force backard
KN
45
Amount of die thimble
Pcs
1+12







Others
System pressure
Mpa
17.5
Motor power
KW
30
Heater power
KW
12.65
Quantity of temperature-control zones
1+4
Bucket capacity
KG
50
Oil tank capacity
L
290
Boundary dimension(L×W×H)
m
5.9x1.6x2.1
Machine weight
Ton
7.2

INJECTION SYSTEM


CLAMPING SYSTEM


HYDRAULIC SYSTEM


ELECTRONIC CONTROL SYSTEM


Application
Auto parts
Sanitation products
Medical field
Black and white household appliance
Toy industry
Home appliances
Powder box
Lipstick
Shoes material products
Packing & Delivery
Company Profile
Zhejiang Sunbun Intelligent Equipment Co., Ltd （Sunbun Machine）is the branch of Sunbun Group. Which Founded in 1993. Through nearly 30 years development Sunbun Group now have Wenzhou, Hangzhou, Shanghai , Xuzhou ,Quzhou 7 Production Base.

Group specialized in scientific research , design and production of hydraulic components , Valve ,Systems and actuators of
construction machinery. As national level high-tech enterprise. Sunbun group have participated in R&D and implementation of “China Torch Program” and “Spark Program”

Sunbun Machine established in 2000 mainly engages in R&D manufacture and sales of automation intelligent equipment and plastic injection molding machine etc. Through the unceasing innovation and development of more than 30 researchers and technicians Sunbun succeeded in launching various injection molding machines and some special use machine (e.g. Medical machine , Sole Making Machine, Tie making machine , Pen Making machine )
FAQ
Q1：What is your machine warrenty ?
A1： For the whole machine we provide 12 month , For the Pull Rod. We provie 24 month For the Mold Platen we provide 36 month Q2: Are you provide auxiliary machine for the whole project ? A2: Yes We provide many brand auxiliary machine also provide turnkey solustation. Q3: How about the quality control in your factory? A3: We have full set testing control files. Every part testing have full record . Before shipment small machine need shot over 7000 times. and big machine shot for 5000 times. Q4: What is your lead time ? A4: If we have stock we can deliver in 3 days. For normal production we need around 30-60 Days depends on machine tonnage. Q5 : Mold trial will be available in your factory ? A5： Yes, Customer can send the mold to our factory and test. If clients buy mold together, we will testing and send sample to clients for final confirmation then shipment. Q6 . Do you provide any spare parts with machine? A6: Yes, We will provide one set standard spare parts to customer including heater ,filter, noozle ,tool box etc. Q7: What about your after sales service A7: we have many experience technical engineers for oversea service, they would help you install machine and provide basic training.
