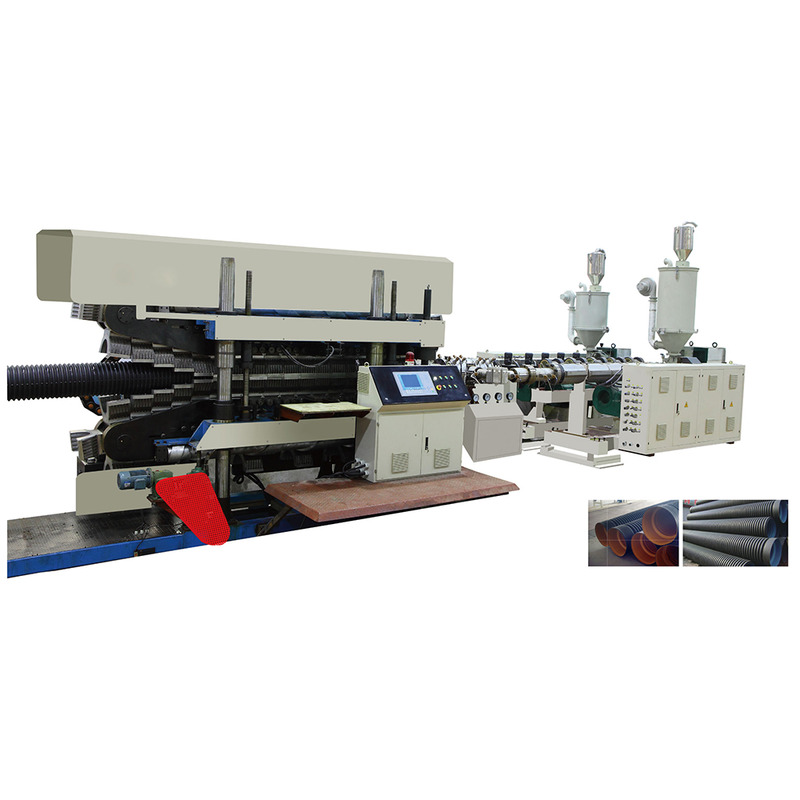

Pelletizing HDPE Plastic Corrugated Pipe Machines Extruder Machine

1 Set
MOQ
$25,500.00(1 - 1 Sets) $23,500.00(>=2 Sets)
Price
Pelletizing HDPE Plastic Corrugated Pipe Machines Extruder Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Pelletizing, PIPE, Sheet
Plastic Processed: FRPP/PVC, HDPE, PE/PP, PPR, PVC
Condition: New
Screw Design: Double-screw
Twin Screw Type: Counter-rotating Conical Twin-screw
Screw Material: 38CrMoALA
Screw Diameter (mm): 65
Screw L/D Ratio: 25:1
Screw Speed (rpm): 50 Rpm
Showroom Location: Indonesia, Viet Nam
Place Of Origin: Jiangsu, China
Brand Name: Xinhe Machinery
Voltage: 220/380/440V 50/60HZ 3Phase
Dimension(L*W*H): 20mx2.5mx2.2m
Power (kW): 75
Weight: 10T
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Building Material Shops, Construction Works
Marketing Type: New Product 2019
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Core Components: Gearbox, Motor, Screw
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support, Video Technical Support
Product: PVC Pipe Production Line
Product Diameter: 16mm-800mm
Raw Material: PVC Powder,CaCa3
Product Type: Water Supply Pipe , Drain Pipe
Inverter: ABB Brand
Electric: Scheider Germany
Controlled By: Siemens PLC
Temperature Controller: Omron Brand
Automatic Grade: Automatic
After Warranty Service: Field Maintenance And Repair Service, Online Support, Spare Parts, Video Technical Support
Local Service Location: Indonesia, Viet Nam
Certification: CE /ISO9001
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Xinhe Machinery
Certification: CE /ISO9001
Payment & Shipping Terms
Packaging Details: packed by woodcase or pp film
Supply Ability: 100 Set/Sets per Year pvc pipe machine with price
Product Description
product description


more details

Screw feeder

Loading Motor Power 1.5kW

Conveying Pipe Diameter ¢102

Conveying Pipe Material 304 Stainless steel

Conveying Capacity 800-1000Kg/h

Work bin Volume 150kg

Voltage 380V 50Hz

Appearance Size 980X750X800mm

Weight 150kg

Conical Twin-Screw Extruder

Screw diameter ø65/132mm

Screw length 1440

Screw barrel material 38CrMoALA

Capacity 150-200Kg/h

Barrel heating method aluminum heating ring

Barrel heating power 24kW

Temperature control zone 4zones

Power source, power pressure 380V 50 HZ

Dimensions 4200X1520X2200mm

Mold machine

Specification Ф25,Ф50,Ф75,Ф100

Base mold 45 # steel quenched and tempered

Die 40Gr forged, hard chrome plated

Sizing sets Copper sleeve material is polished

vacuüm calibration case

Pipe range Ф25-Ф110mm

Case material SUS304

Adjusting distance ±50mm

Moving distance ±40mm

Moving distance 900mm

Motor power for case moving 0.75kW

Center height 1000mm

Vacuüm pump power 3kW

Vacuüm pump model Circular water

haul-off device

Pipe range Ф25-Ф110mm

Traction block type V type rubber block

Case hight adjusting ±50mm

Case center height 1000mm

Effective traction length 1200mm

Traction motor power 2.2kW

Traction speed 0.3-6M/min

Caterpillar clamp type Motor driver

Cutter

Pipe cutting diameter range Ф25-Ф110mm

Cutting type Saw cutter

Case height adjusting ±50mm

Box center height 1000mm

Effective 500mm

Cutting motor power 1.5kW

Working line speed 0.3-8M/min

Pinch pipe form Pneumatic

Final Products

Company Profile
FAQ

1.Q: Is Xinhe a factory or trading company?
A: We are professional manufacturer for the plastic production line and has been in this area for over

20 years.


2. Q : How will you offer me the quotation if I’m not very familiar with this production line?
A: You can send me you requirements on the products you want and I will recommend you with the most suitable production line and also the quotation for that.

3. Q:How many years warranty of the line ?And other Service ?
A: We offer 1 year warranty for the lines after you received the machines.
(Changing parts or repairing is available during the warranty time)
Oversea technician service is available.

4. Q : How about your delivery time ?
A: Normally we need 45-50 days for the production time after receiving your 30% of the deposit.


5.Q:What`s the Trade term and payment term do you accept?
A : Fob or CIF are both available.
Payment that we accept : 100 % T/T (30% deposit + 70% before shipment )
